Design · Machining · Fabrication · Welding

Offroad Track System

Built from scratch for a SEMA 2018 show truck. Every component — from the track frames to the drive hardware — was designed in CAD, machined, fabricated, welded, and assembled in-house. Nothing came off a shelf.

Track system design with engineering drawing overlay — The finished assembly against the engineering drawings it was built from.

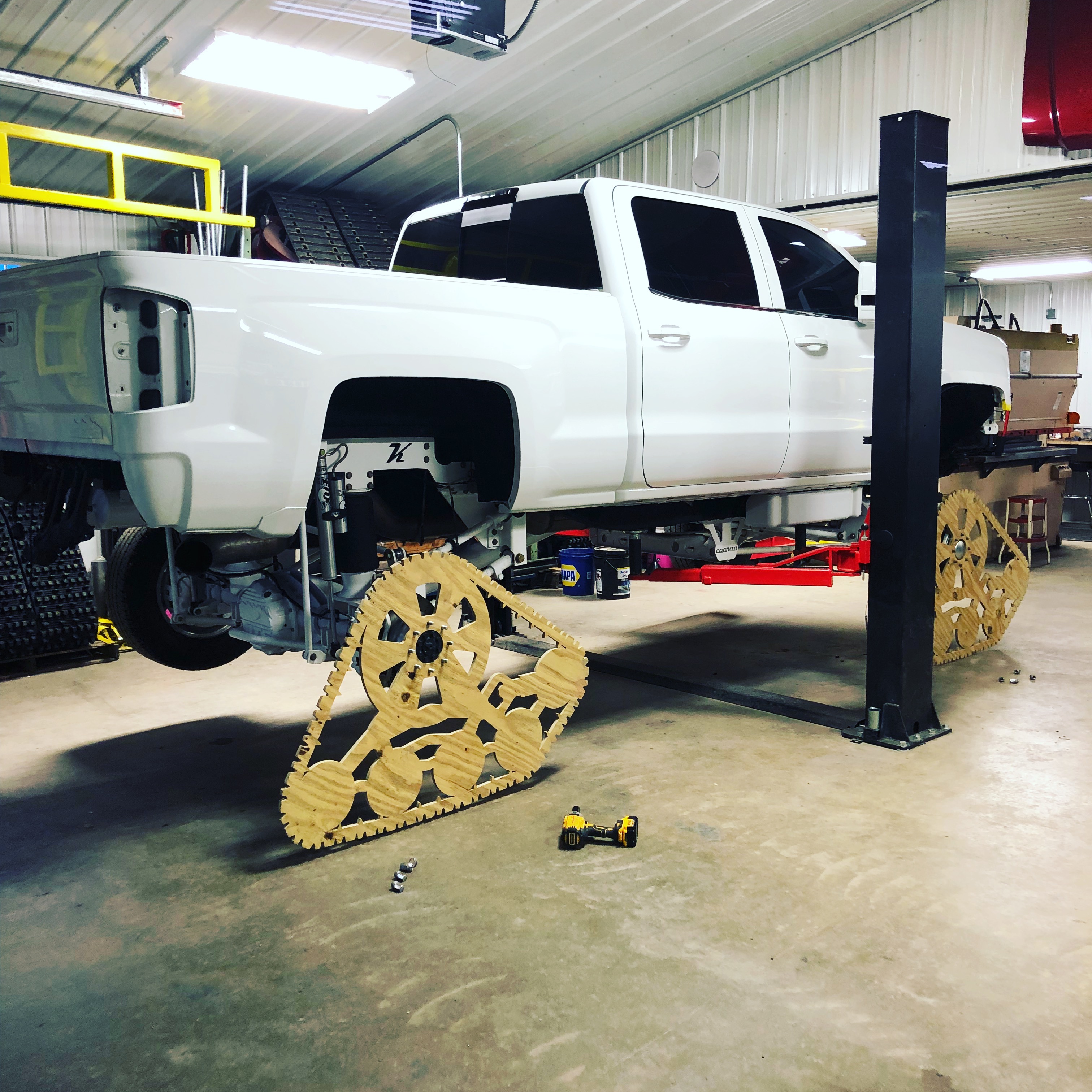

Plywood prototype track on truck in shop — Full-scale plywood mockup to verify geometry and fitment before cutting metal.

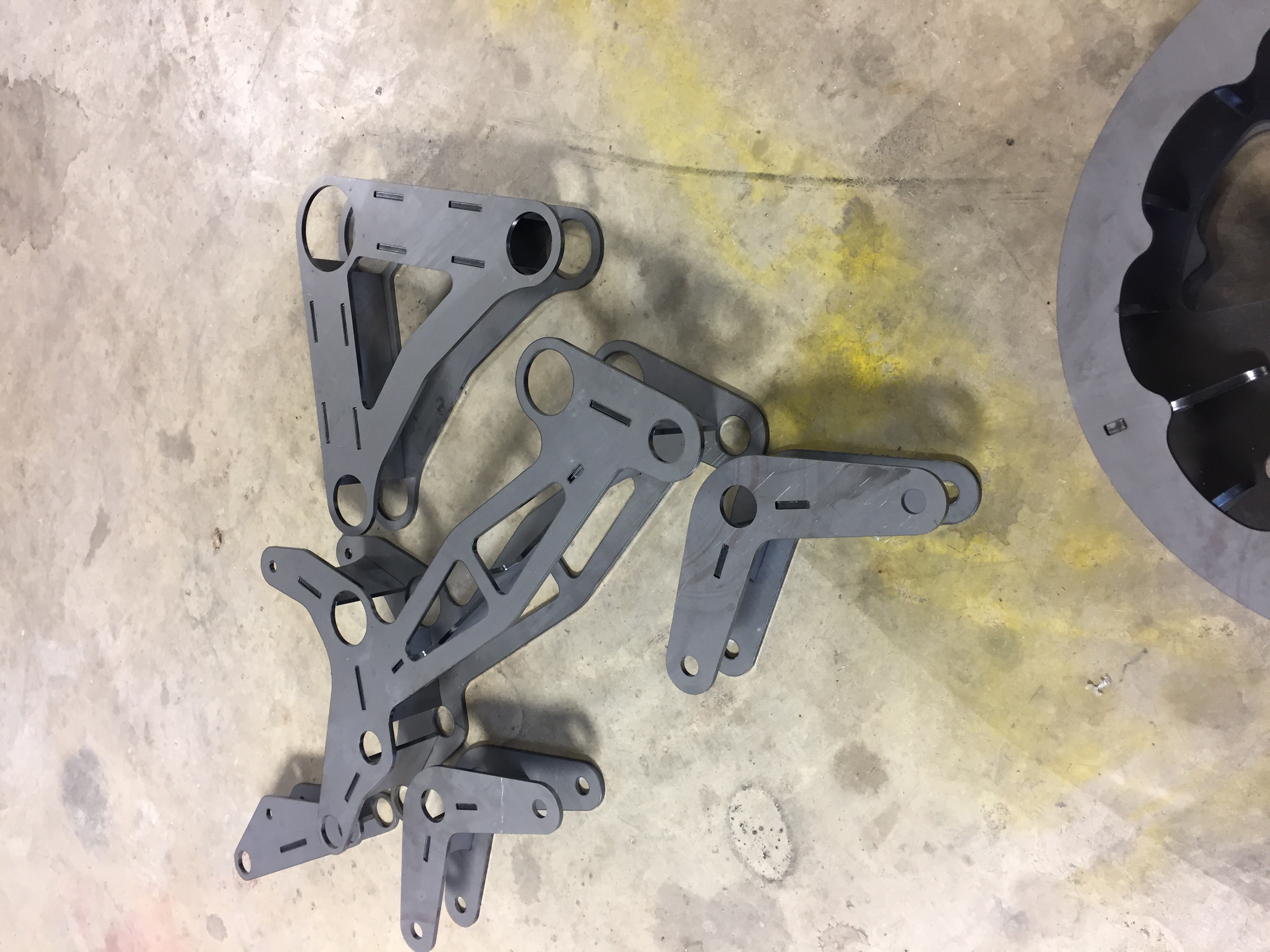

Machined suspension arms and sprocket parts — Suspension arms and sprocket — machined in-house.

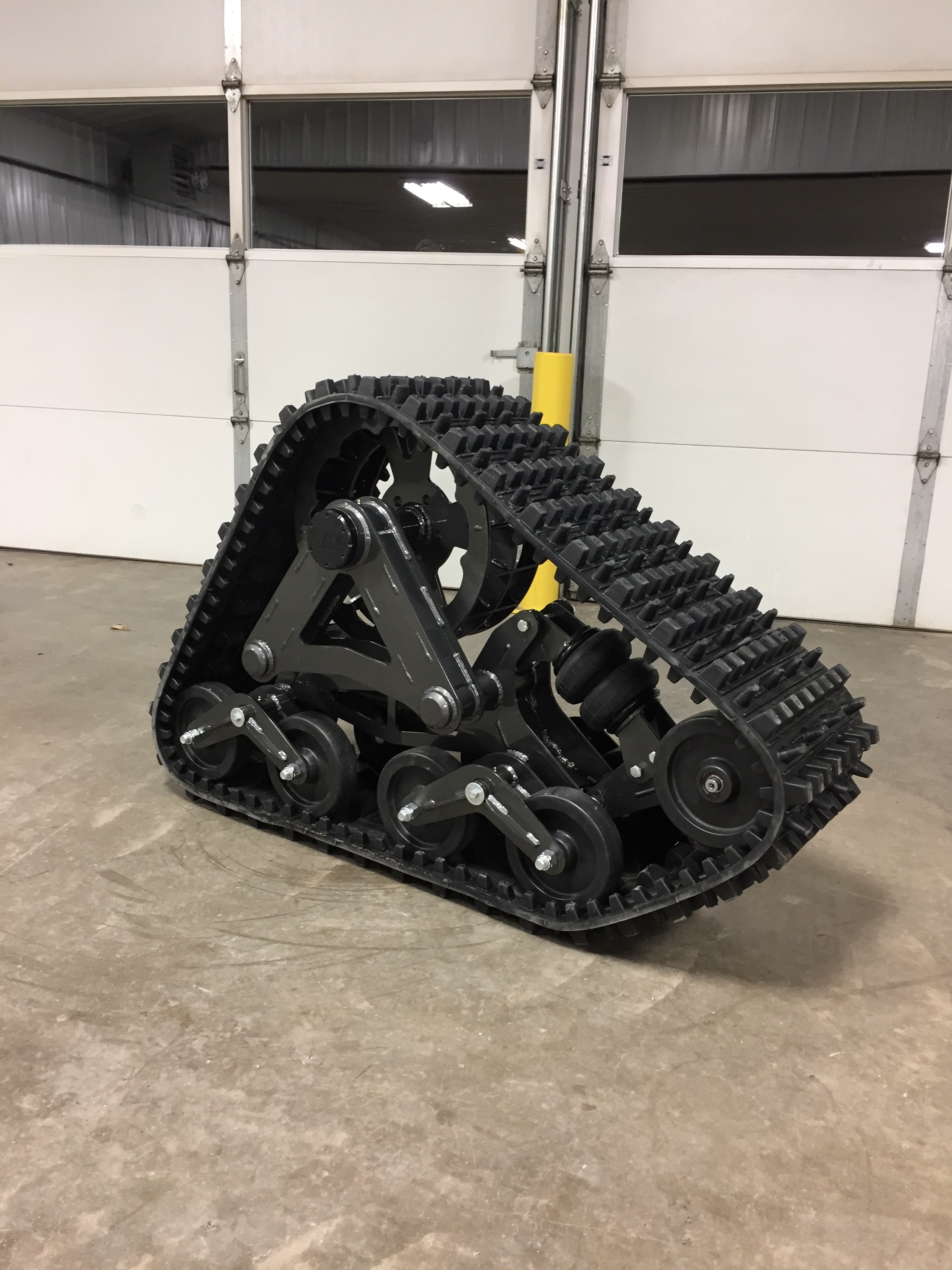

Completed track assembly in clean warehouse — Completed assembly before install.

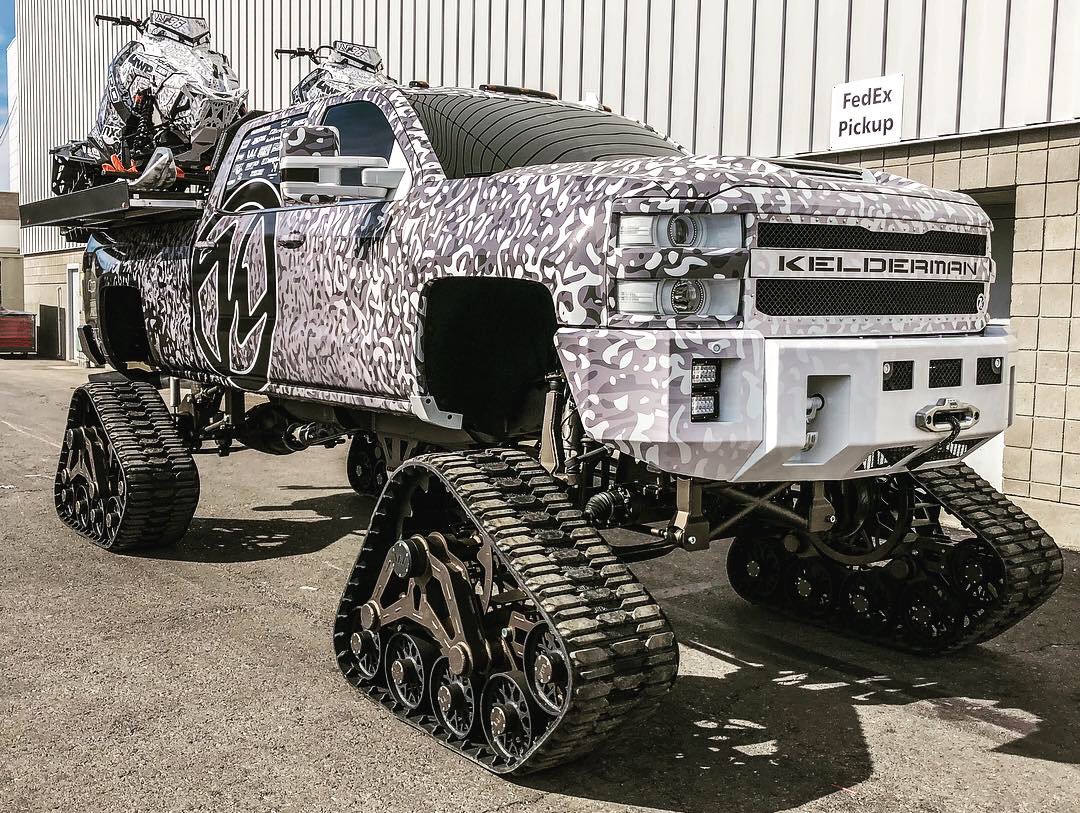

Finished camo show truck with track system at SEMA — On the show truck at the event.
