3D scanning tractor steering support bracket

3D Scanning · Reverse Engineering · Machining

Tractor Housing Repair

A tractor steering support bracket with an uneven casting — no flat reference surface, no drawings, no replacement available. Scanned the back face to capture the actual geometry, designed a 3D printed insert from the scan data so the housing could be fixtured accurately in the mill, then machined new bores and turned a replacement bushing to bring it back to spec.

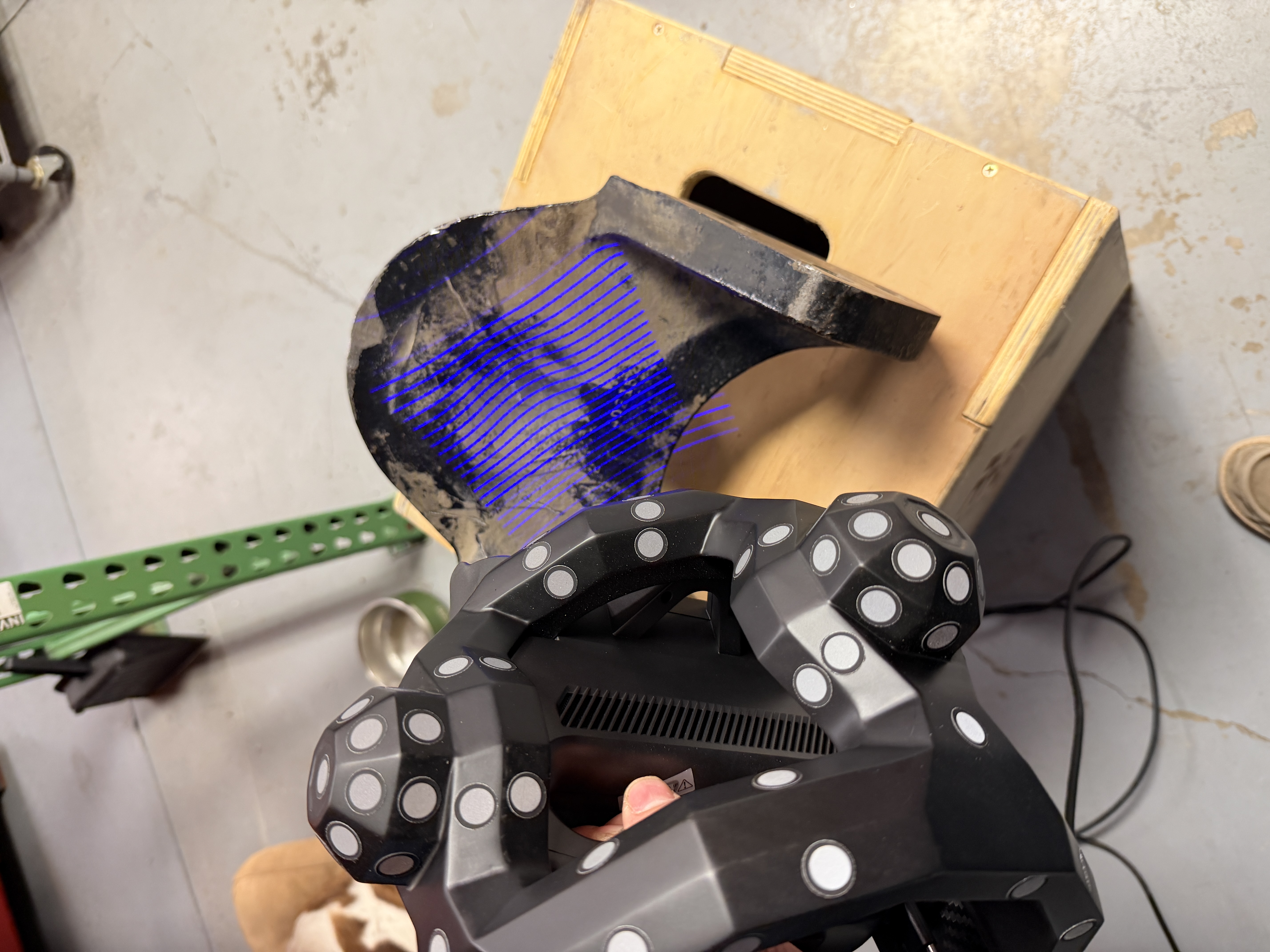

Revopoint MetroX scanning the back face of the bracket — the casting is uneven with no usable flat surface to fixture from.

3D printed insert designed from scan data — 3D printed insert designed from the scan. Matches the actual casting geometry so the housing sits flat and can be set up accurately in the mill.

Tractor housing fixtured in mill using printed insert — Housing set in the mill on the printed insert — quick and accurate setup despite the uneven casting.

Turning a new bushing on the lathe — Turning the replacement bushing on the lathe.

Lathe setup for precision machining — Lathe set up for the finish pass.
